I-Cover™ for Reformer Tubes

Insulation for Reformer Tubes

Reformer tubes are critical components in high-temperature processes such as Ammonia production, Fertilizer manufacturing, Methanol synthesis, and Hydrogen production. These industries rely on Steam Methane Reforming (SMR) and other catalytic reforming processes that operate at extreme temperatures (800–1000°C). Over time, uneven heat distribution, thermal stress, and hot spots accelerate tube degradation, leading to reduced efficiency, increased fuel consumption, and unexpected failures.



Types of Insulation Covers

We provide various types of reformer tube insulation covers, ensuring enhanced heat efficiency, durability, and protection. Our insulation covers include:

  • Pigtail/Hairpin Mattresses (Full Tube)

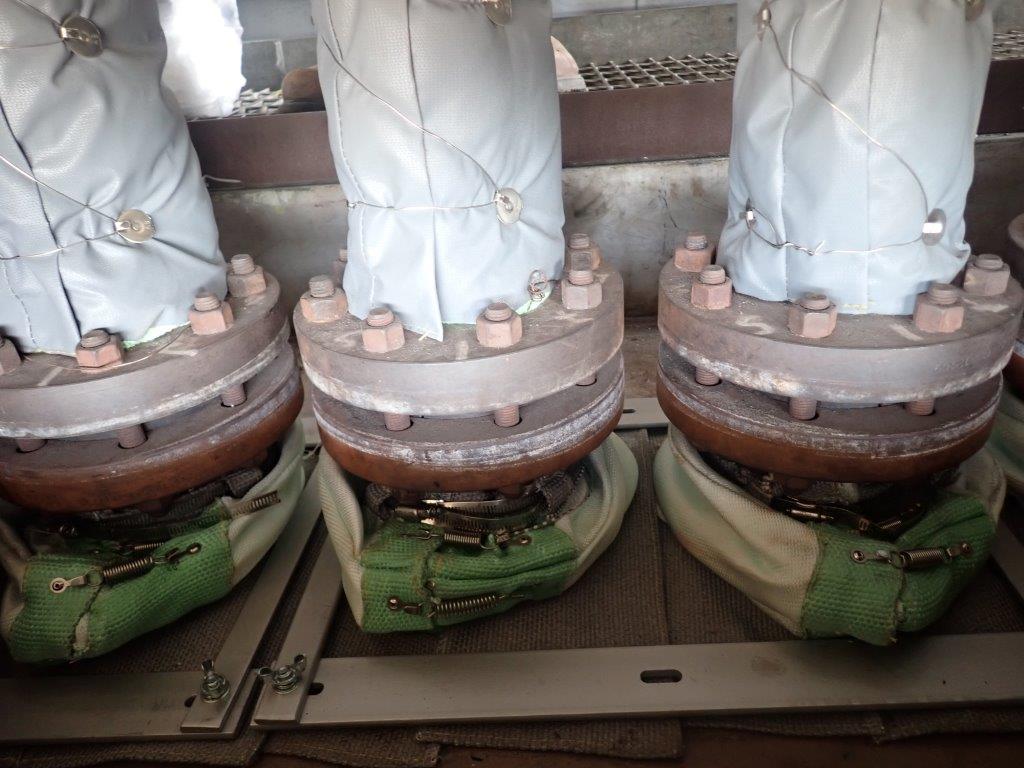

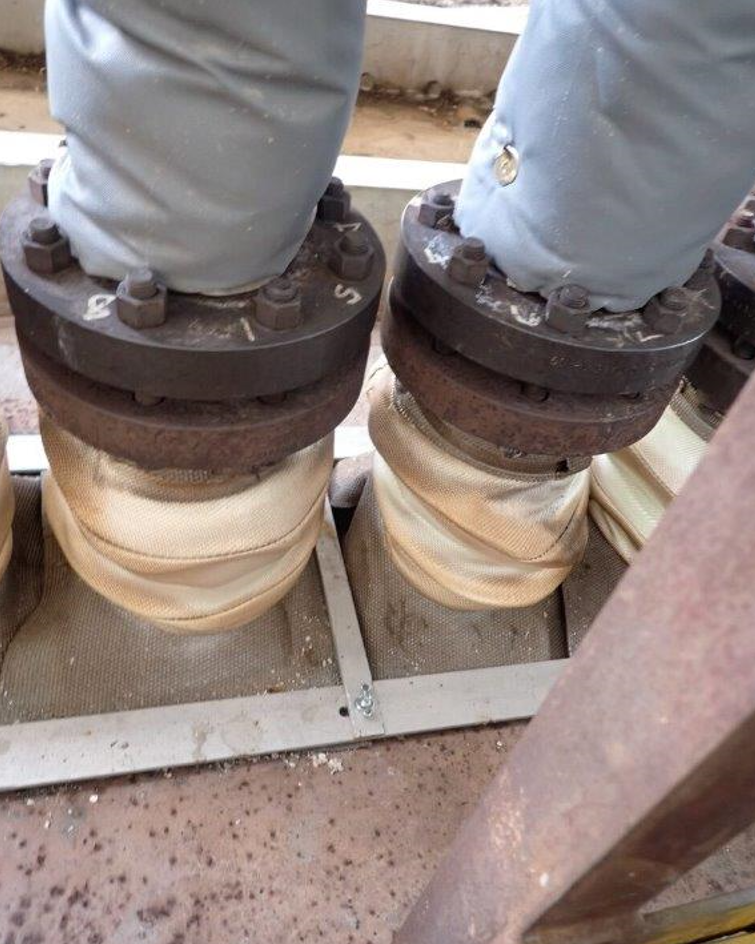

  • Reformer Outlet Tube Insulation
  • Pigtail/Hairpin (Sectional - Elbow)

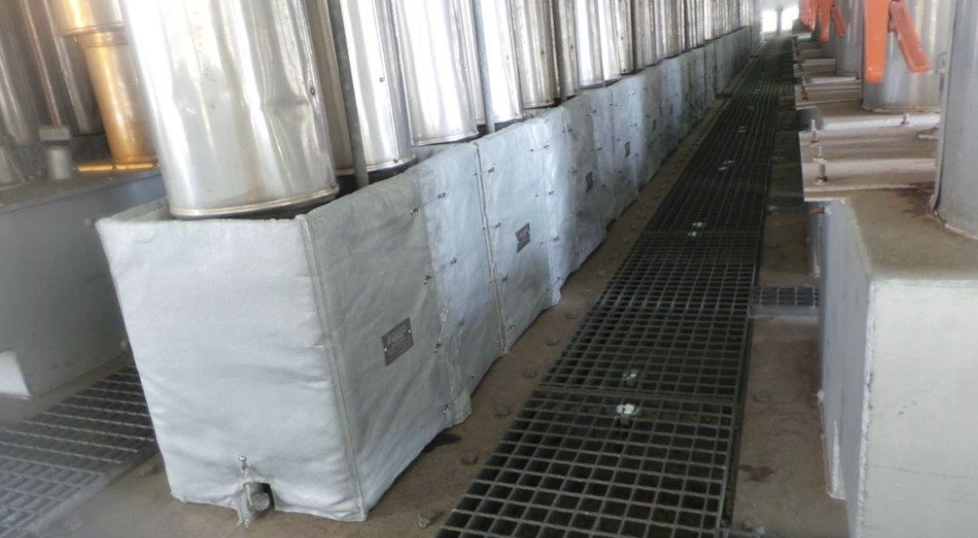

  • Box Design Insulation

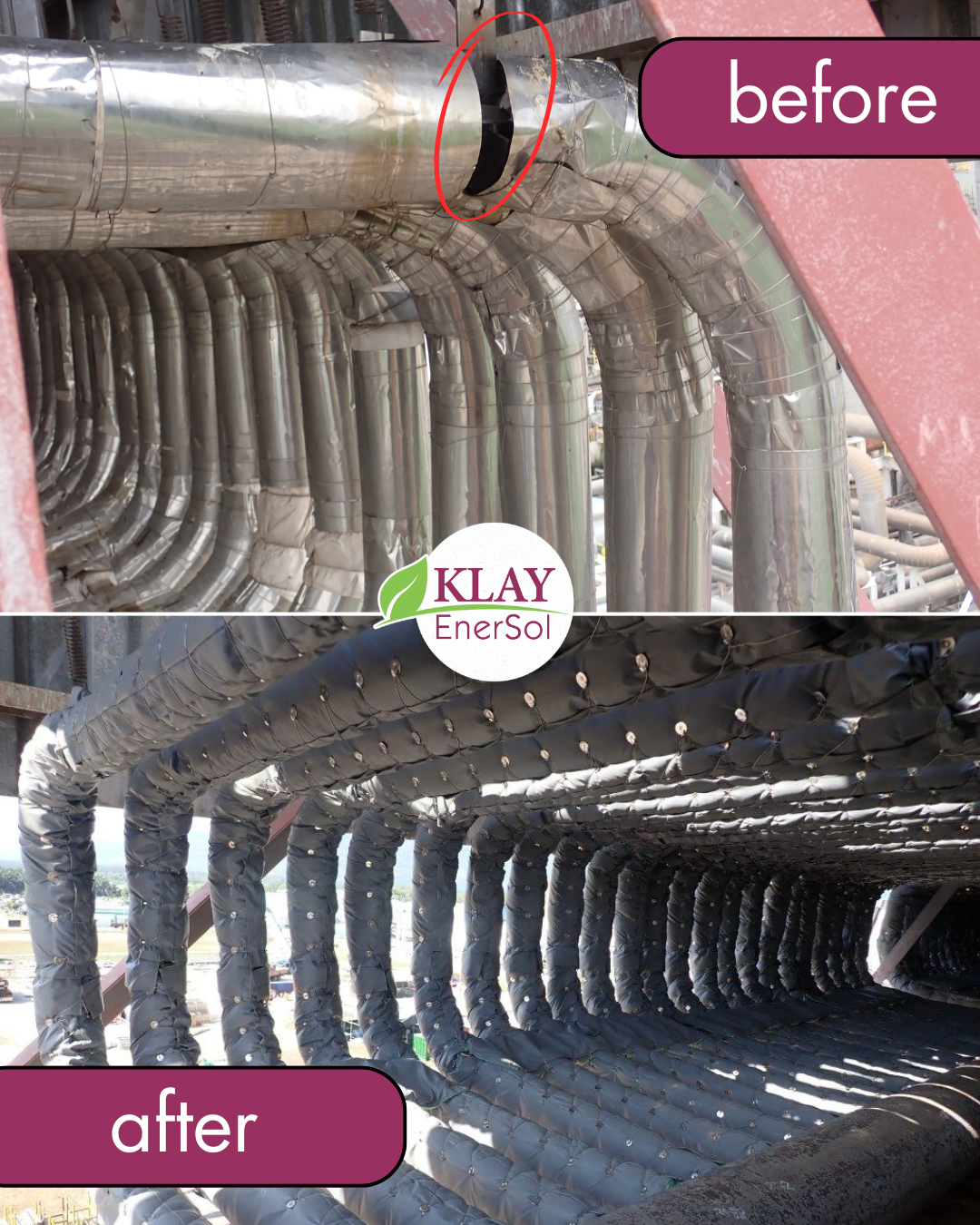

CONVENTIONALLY INSULATED VS I-COVER™ INSULATED REFORMER TUBES

During shutdowns and maintenance, furnaces cool down, causing reformer tubes that normally protrude above the furnace roof to retract just below the furnace surface. Conventional insulation methods cannot be applied during this phase due to the lack of exposed surfaces.

Once operations resume, the tubes expand and become exposed to extreme temperatures exceeding 400°C, leading to significant heat loss and increased ambient temperatures in the furnace roof area, creating an unsafe working environment.

Furthermore, conventional insulation methods are rigid, wear off quickly, and are difficult to remove for inspection, making maintenance cumbersome.

I-Cover™ : Advanced Insulation for Reformer Tubes

KLAY EnerSol’s I-Cover™  insulation solution is specifically designed to improve heat uniformity, prevent hot spots, and extend the lifespan of reformer tubes in industries such as Ammonia, Methanol, Fertilizer, and Hydrogen production. By optimizing thermal distribution and reducing heat loss, the I-Cover™  ensures higher efficiency, lower maintenance costs, and improved operational reliability.



I-Cover™  provides a complete insulation solution for reformer tubes, including inlet tubes, hairpin sections, bottom outlets, and other critical areas. Engineered to withstand extreme operating conditions, I-Cover™  reduces heat loss, minimizes thermal stress, and extends reformer tube life by ensuring uniform heat distribution.



Unlike conventional insulation, which can be rigid and difficult to remove, I-Cover™  is designed for flexibility, allowing easy removal for maintenance and inspection without compromising performance. Additionally, we offer bespoke insulation solutions for specific components, such as small elbows, tube bends, and high-heat exposure points, ensuring targeted protection without the need for full tube coverage.

I-Cover™ Fabrication: Precision-Engineered for Maximum Performance

Assessing reformer tube conditions in Ammonia, Methanol, and Hydrogen production plants.

a tailored insulation solution for maximum heat uniformity.



Fabricating high-quality insulation covers for precise thermal control.

Deliver shipment in a timely manner with strict quality control.

Seamlessly on-site for immediate performance enhancement.

Materials Fabrication

I-Cover™ is manufactured by stitching insulation material between high temperature fabrics, additional fasteners are then added to the top fabric for ease of installation and removal. As result, we have removable insulation covers and blankets, which are flexible, durable and tough. They are also known as thermal insulation jackets because of these properties.

Target Applications

Ammonia Plants and Fertilizer Manufacturing

 Ensures stable operating temperatures in Ammonia reformers and syngas production, reducing energy losses.

Petrochemical & Refining Plants

Protects reformer tubes from thermal degradation, oxidation, and hot spots

High-Temperature Industrial Equipment

Reduces heat stress and energy waste in extreme operating conditions.

Hydrogen & Syngas Production

Improves efficiency in Steam Methane Reformers (SMR), ensuring uniform heat distribution

Methanol Production Facilities

 Enhances thermal efficiency in Methanol synthesis reformers, prolonging tube life.

Specification Compliance and Performance

KLAY EnerSol’s I-Cover™ follows several international standards which include

ASTM C1695 – Standard Specification for Fabrication of Flexible Removable and Reusable Blanket Insulation for Hot Service.



KLAY's Offering

KLAY EnerSol offers a complete solution to our clients for removable insulation jackets which includes site survey, design engineering, fabrication, removal of existing insulation and installation of new removable insulation covers.

We also offer manufacturing services to OEM’s to have ready stock of insulation jacket parts for South East Asia Region.

Our facilities are designed to scale up and handle large scale orders for gas turbines, large vessels and reactors. At the same time, we can do bulk manufacturing for the same sizes.

Where high-temperature performance matters, I-Cover delivers maximum protection and efficiency.
